DXF FILES

There are a ton of resources for ready to cut .dxf files these days.  I have links to a few below as well as files that I have created / modified or have authorization to distribute. This section of the website will be updated on a regular basis so please check back you can also follow the Facebook page to be updated on new content.

Places to Download or Purchase files:

DXF Files Free to Download

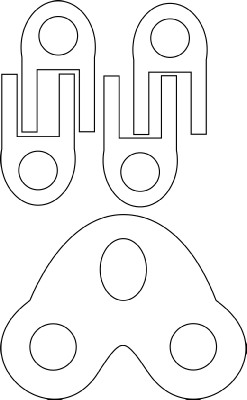

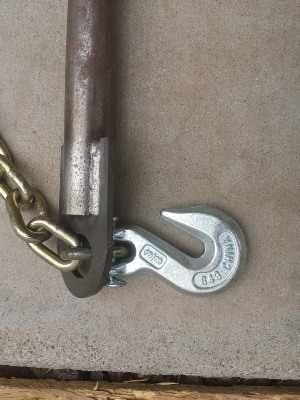

Engine Hoist Modification parts for lifting sheets

Lifting plate designed to be cut out of ½ mild steel

spreader bar plates are designed for ¼ mild steel.

weld tube in between the spreader bar eyes about

3 feet long.  Use grade 70 or better chain to attach

lifting plate to material.

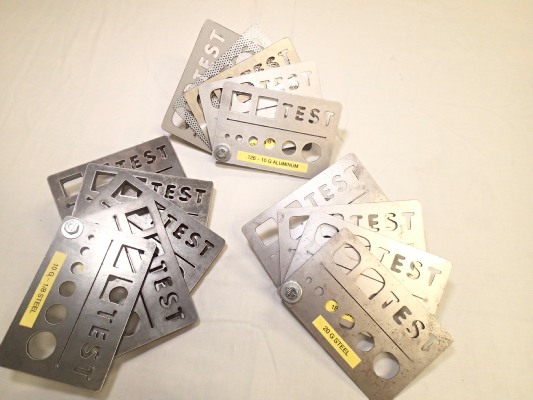

Cutting Examples

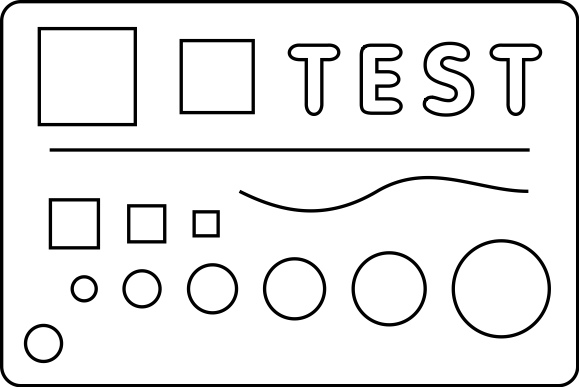

These are designed to be used as reference pieces for you

and your customers.  The CAD file is set to true values.  Cut

this piece in all of your materials.  Then use calipers to

measure the holes to give you cut dimensions.  Now you

can accurately off set drawings to compensate for any

variance so you can have holes that accurately fit. You

can also use these to show customers your ability as well

as give them an idea what the different metal gauges are

actually like.

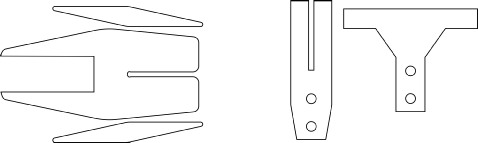

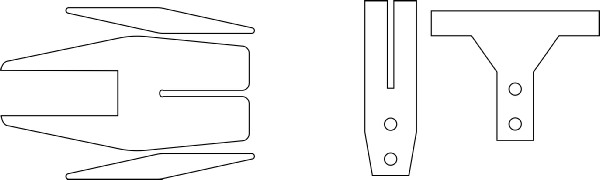

Cutting slat cleaners

These are designed to be cut and welded up out of ¼

or 1/8 steel plate.  Then welded / mounted to a pole

to allow you to clean the slag off your cutting slats.

there are two different designs here.  Both will need

to have slight bends put in them to work properly.

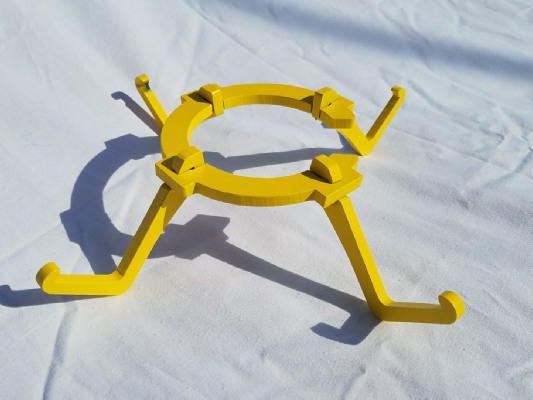

Welding tank hook storage

these are designed to be cut out of ¼ steel plate

and then welded up.  They work best on standard

welding cylinders but can also work on scuba tanks

and other cylinders.



COFFEE Sign

I typically cut this out of 14g cold rolled steel.







Faith is like Wifi Sign

I typically cut this out of 14g cold rolled steel.






Tattered American Flag

This is a very popular item and there are hundreds of

variations out there this is mine.  I typically cut this out

of 14g cold rolled steel.

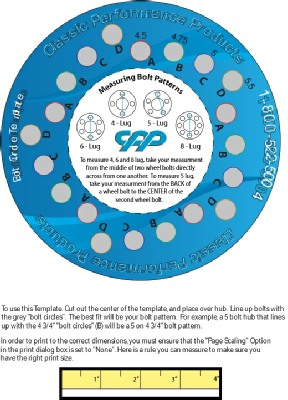

Tire Lug Template

This file is two parts.  Print this PDF file so you can reference the sizes.

Then you can download the cut file template and cut it out of a piece of

Thin steel.

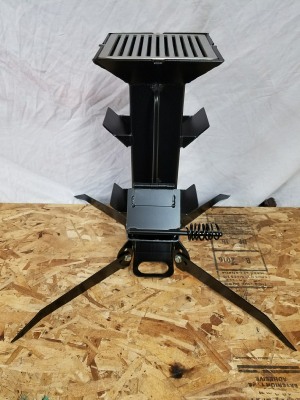

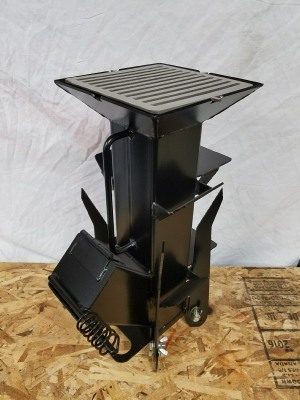

Rocket Stove

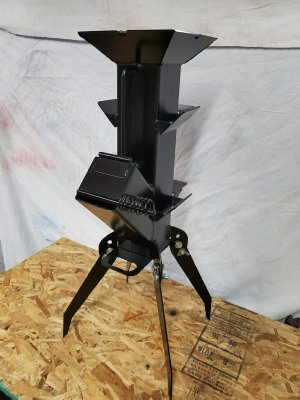

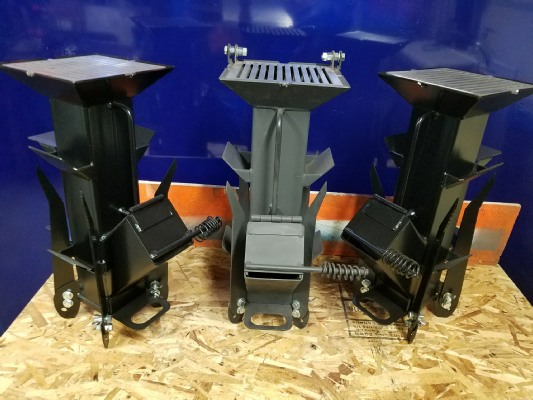

This is has been a very popular file for me.  I sold many copies and now I’m offering it for free.  Click here to down load the cut files.       Click here to download the directions.   Here are some pictures of the stove below.

Additional Files will be added on a regular basis please check back often!
